Learning-Augmented MPC for Reentry Attitude Control

Abstract

This project asks a narrow question that turns out to be more interesting than a broad one: if a predictive controller is given a scheduled reentry attitude corridor, actuator position and rate limits, uncertainty, and a reduced-order longitudinal plant, what breaks first?

The first answer is uncomfortable. Nominal nonlinear MPC is better than the initial PID and gain-scheduled LQR baselines, but on the fixed paired Monte Carlo benchmark it succeeds in only 3/30 moderate scenarios and 3/30 stress scenarios. Constraint tightening, scenario MPC, and residual dynamics correction improve some smooth metrics, but they do not improve the strict binary success label. The controller keeps missing the alpha corridor.

The second answer is more useful. Diagnostics show that failures are dominated by angle-of-attack corridor misses, not simple flap-angle saturation. Later feasibility oracles estimate that the benchmark itself has a strict feasibility ceiling of 15/30 moderate scenarios and 11/30 stress scenarios under the audited actuator-truth-consistent setup. The final hybrid imitation plus slack-MPC architecture matches that ceiling while keeping MPC as the decision-making authority.

The result is not "AI solves reentry." The result is a disciplined learning-augmented MPC story: let nominal MPC fail honestly, diagnose the constraint geometry, estimate the feasible ceiling, then use learning as a prior or warm start inside a slack-aware constrained controller.

What this contributes

The contribution is not a new theorem or a flight-ready controller. It is a reproducible control story: define a strict corridor, build increasingly capable controllers, keep the benchmark fixed, and let the failures determine the next design decision.

How the project was built to be falsifiable

The most important design decision was not a controller. It was the evidence workflow. Every experiment stage had to write stable CSV, JSON, figure, and log artifacts before it earned a place in the article. That sounds like bookkeeping, but it changes the tone of the research. It makes it harder to turn a good-looking plot into an unsupported claim, and it makes it easier to preserve negative results without burying them.

The repository uses a src/reentry_mpc package layout, experiment-specific configs, experiment-specific scripts, and tests for every major milestone. The purpose is mundane and useful: make the blog read like a research artifact rather than a memory of a notebook session. If the article says a controller scored 3/30, the reader should be able to trace that number to a summary CSV, a config, and a rollout directory.

This is why the article spends so much time on failures. A negative result from a reproducible benchmark is not dead weight. It is a constraint on the next hypothesis. Constraint tightening failed to move strict success, so the problem was not just missing margin. Residual correction failed to move strict success, so open-loop residual prediction was not enough. Oracle replay failed to recover missed feasible cases, so imitation error alone was not the whole explanation.

The control problem

The vehicle model is intentionally reduced. It is not a six-degree-of-freedom entry simulator. It is a longitudinal attitude benchmark designed to keep the hard control ingredients visible: angle of attack, pitch rate, pitch angle, scheduled atmospheric conditions, flap authority, actuator lag and delay, and uncertainty.

The state and input are:

The success definition is deliberately strict. Good tracking is not enough. A rollout can have lower RMS alpha error and still fail if it leaves the allowed alpha corridor. That matters because the corridor stands in for aerodynamic, thermal, and stability limits. In this benchmark, the contract is not "look smooth"; the contract is "stay inside."

That strictness created the project’s main tension. Most controllers could eventually produce plausible-looking flap commands. Many could reduce average tracking error. But strict success was brittle because a single alpha excursion could flip the label. That made the benchmark frustrating in exactly the right way: it prevented the project from declaring success based on a pretty trajectory.

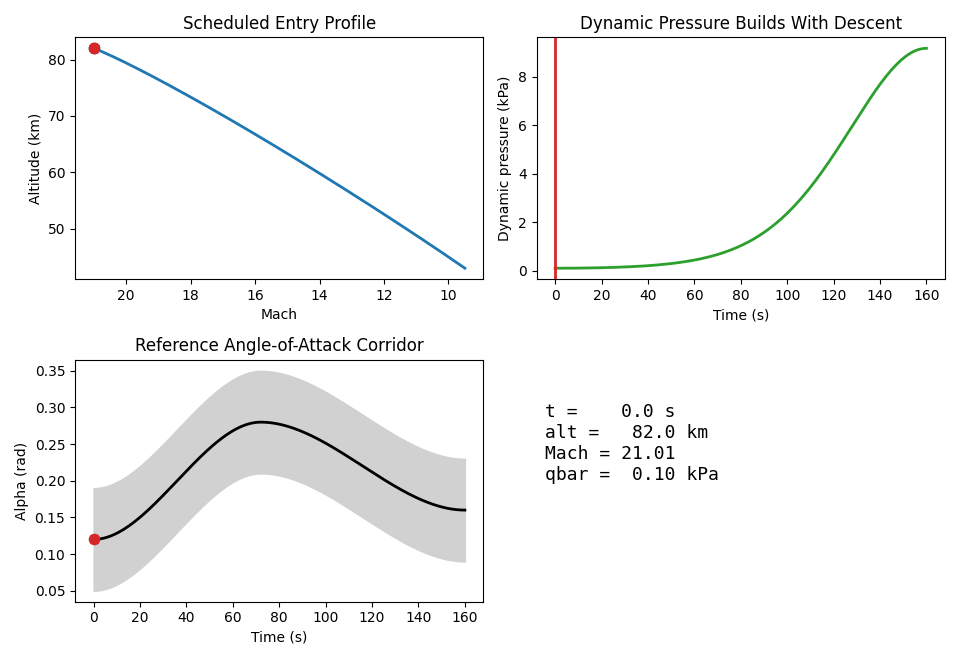

Model, schedule, and corridor

The first model decision was to schedule altitude, velocity, Mach, density, and dynamic pressure rather than propagate a full translational reentry trajectory. That was a deliberate reduction, not an oversight. It isolates the attitude-control question while keeping the reentry-specific pressure terms that make the flap effectiveness and aerodynamic moments change over time.

A full entry simulation would be more impressive, but it would also multiply the number of unvalidated assumptions. This project needed a controllable ladder: first make the longitudinal attitude dynamics, corridor, actuator limits, and uncertainty reproducible; only then ask whether a more complete vehicle model is worth adding.

The nominal plant is a scheduled reduced-order attitude model:

The Monte Carlo truth plant perturbs that model:

where w includes density scale, aerodynamic coefficient bias, actuator lag, actuator delay, sensor noise, initial state error, and disturbance moment. The point is not to certify a vehicle model. The point is to make the controller confront enough mismatch that nominal planning can fail in informative ways.

The alpha-dynamics bug that changed the baseline

One early correction mattered enough to preserve in the story. The reduced alpha dynamics were changed to use pitch rate:

The reason is dimensional and physical. Angle-of-attack rate has units of radians per second, so the kinematic attitude contribution should be pitch rate, not pitch acceleration. In reentry shorthand, this is the reduced-order echo of alpha_dot ~= q - gamma_dot. Fixing this made the deterministic nominal NMPC result meaningful: the controller was no longer compensating for a model equation with the wrong state derivative structure.

This kind of correction is easy to hide in a polished article. It is more useful to expose it. The point of the simulator stage was not to pretend the first reduced model was perfect. The point was to build enough tests and artifacts that a sign, unit, or derivative mistake could be found before the project started judging learning algorithms.

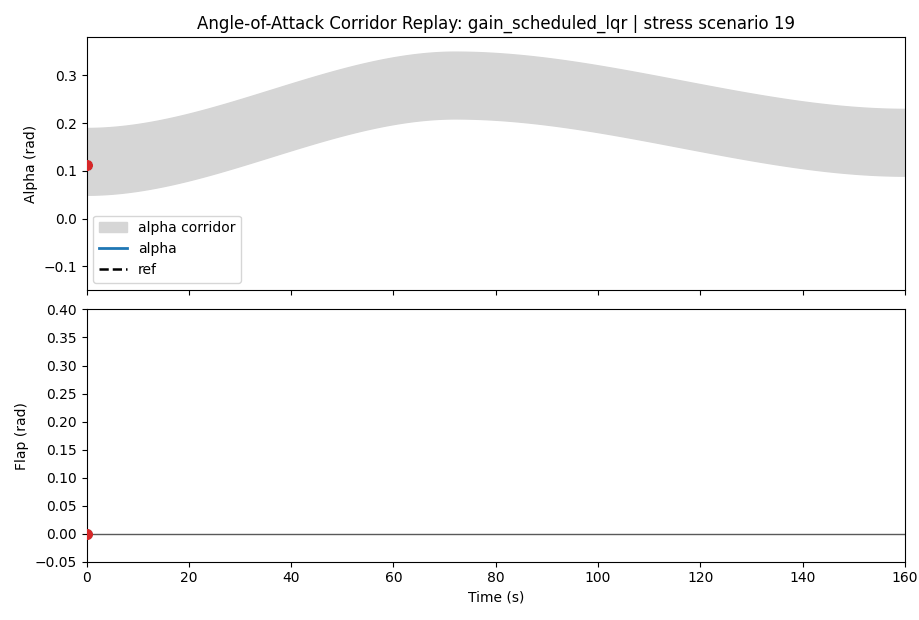

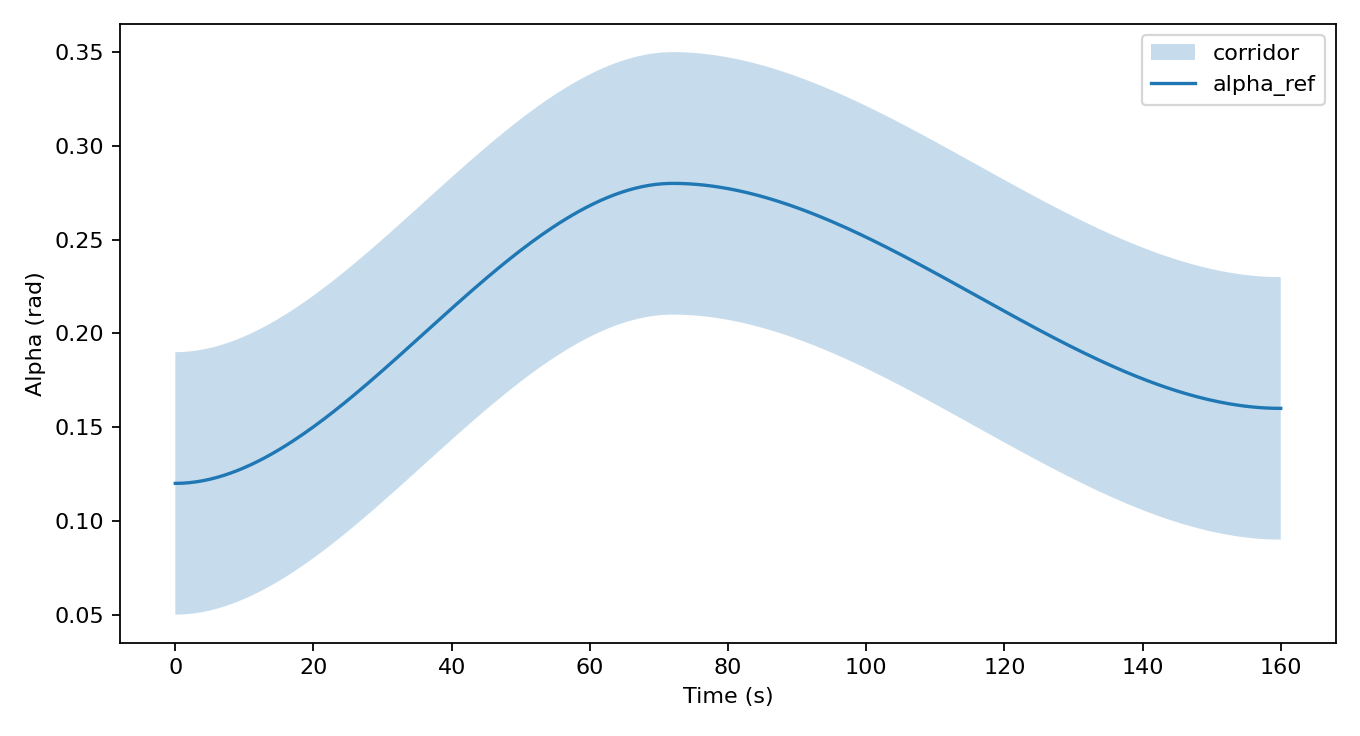

The corridor is:

The actuator is limited in both position and rate:

Why the classical baselines mattered

The PID and gain-scheduled LQR controllers were not included as straw men. They were included because a learning-augmented MPC project that cannot beat or learn from simple classical baselines is usually not ready for learning. The baselines also forced the project to define shared rollout code, shared actuator limiting, and shared success metrics before the optimizer entered the picture.

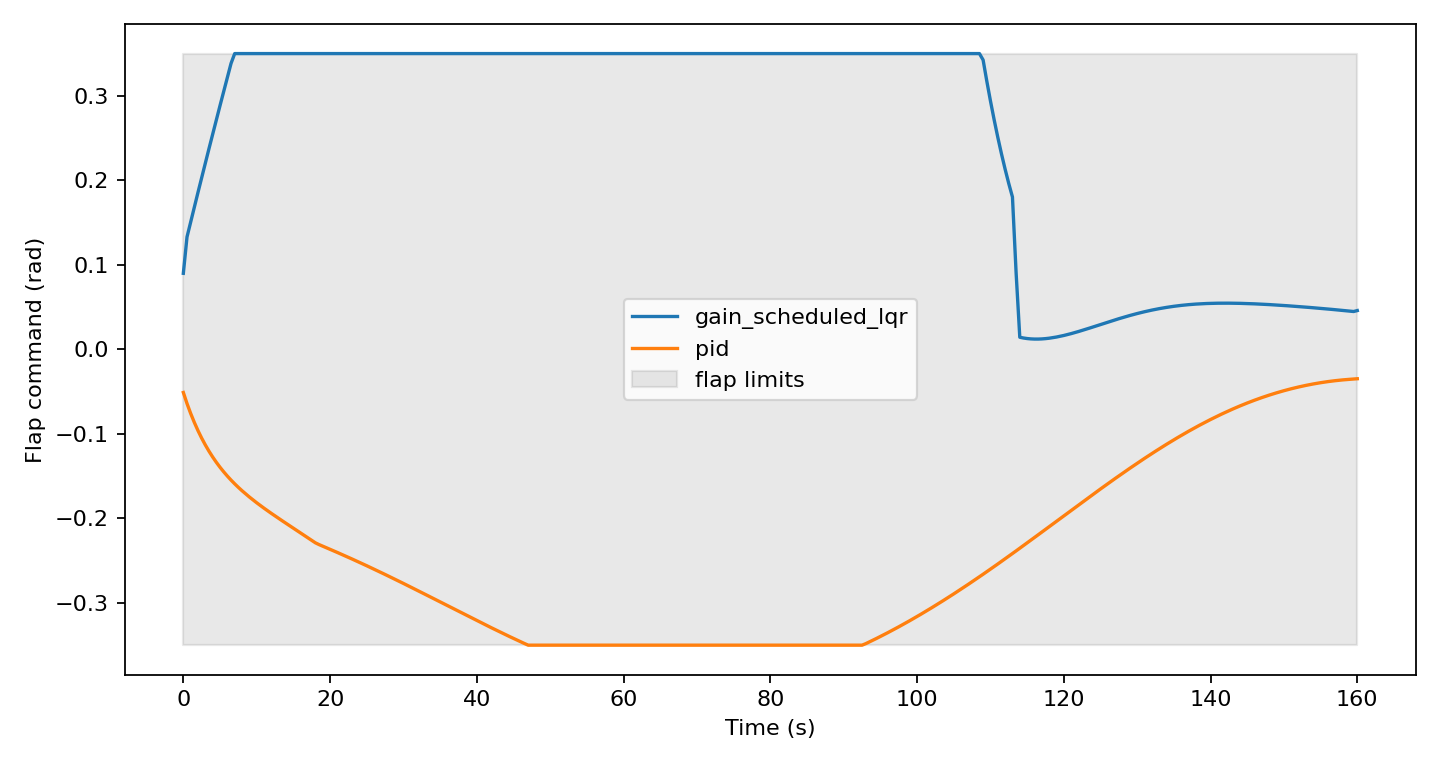

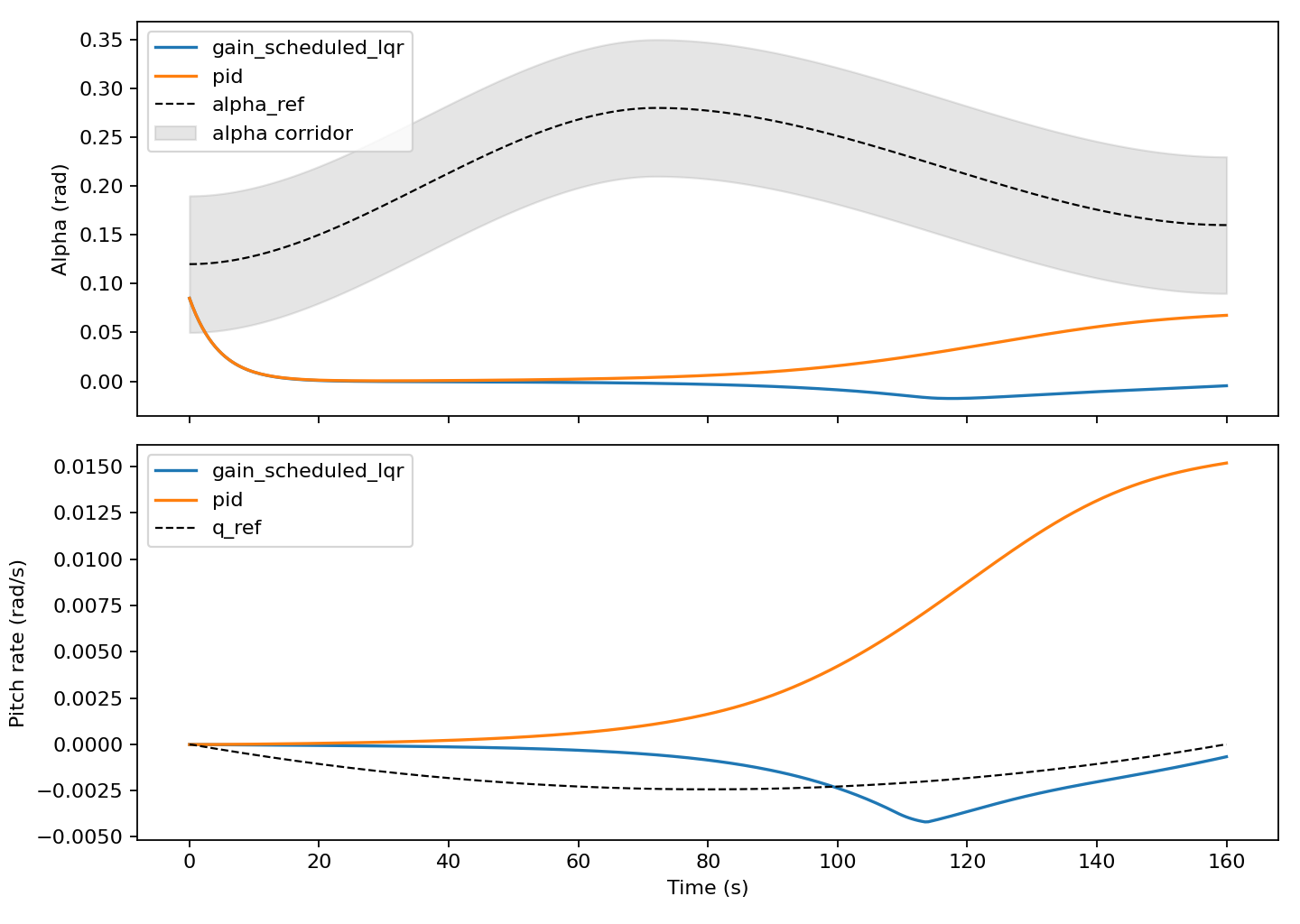

The PID controller gave a direct alpha and pitch-rate tracking reference point. The gain-scheduled LQR went one step deeper: the nonlinear reduced-order model was finite-difference linearized at schedule points, then small discrete Riccati problems produced local feedback gains. This kept the baseline dependency footprint small while still giving the project a real scheduled linear controller.

The outcome was not "PID and LQR are bad." The outcome was more specific: under this reduced-order plant, this reference profile, this actuator envelope, and this strict alpha corridor, both baselines failed the configured corridor success criteria. That made them useful. They showed that ordinary tracking feedback was not enough to manage a future constraint band.

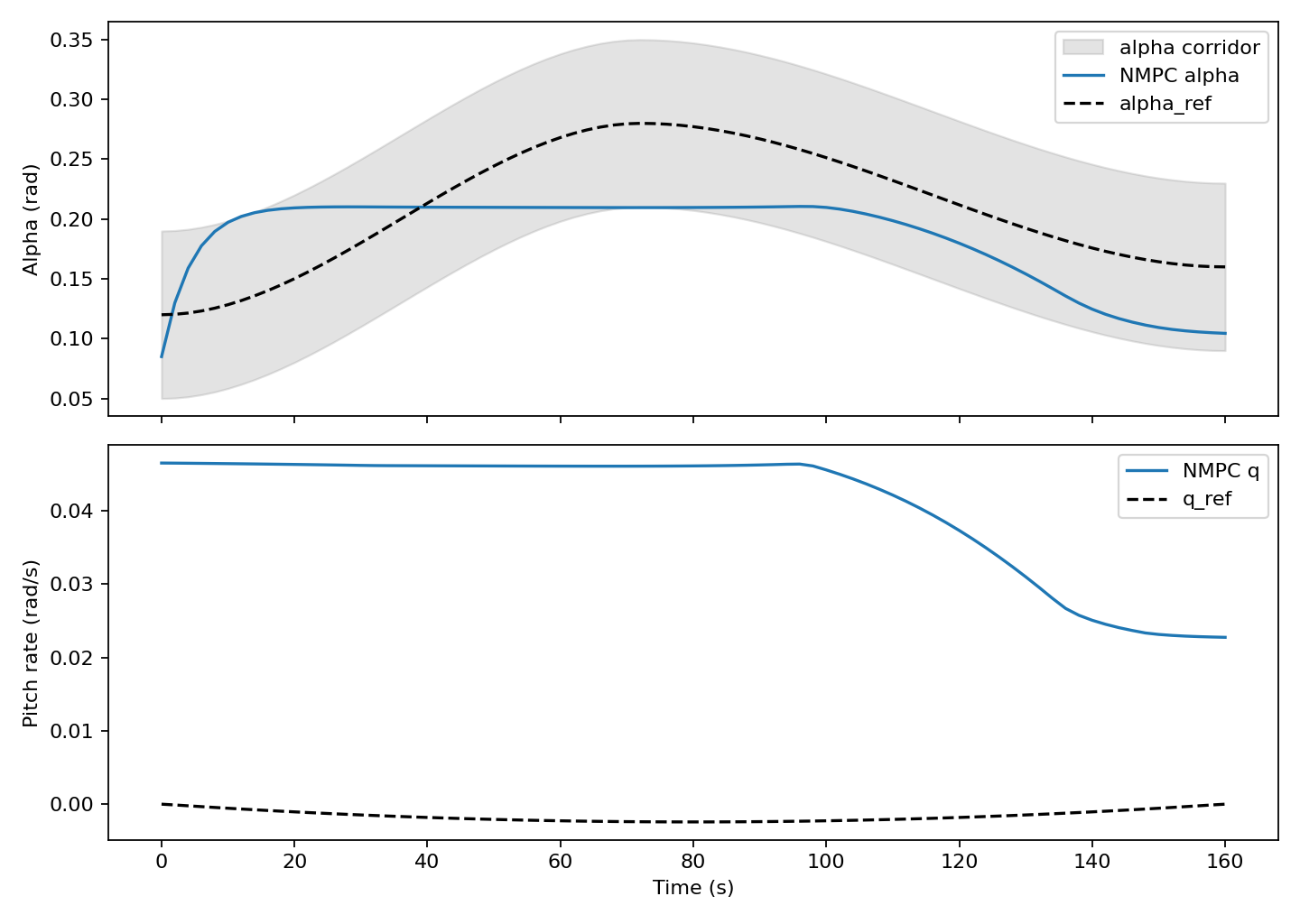

Why nominal NMPC was the right serious baseline

PID and gain-scheduled LQR are valuable because they are simple, inspectable, and hard to dismiss. But they do not naturally optimize future corridor pressure. NMPC does. At each control step, the controller solves a finite-horizon problem with tracking cost, control effort, flap-rate penalty, hard actuator bounds, and soft logged state-corridor slack:

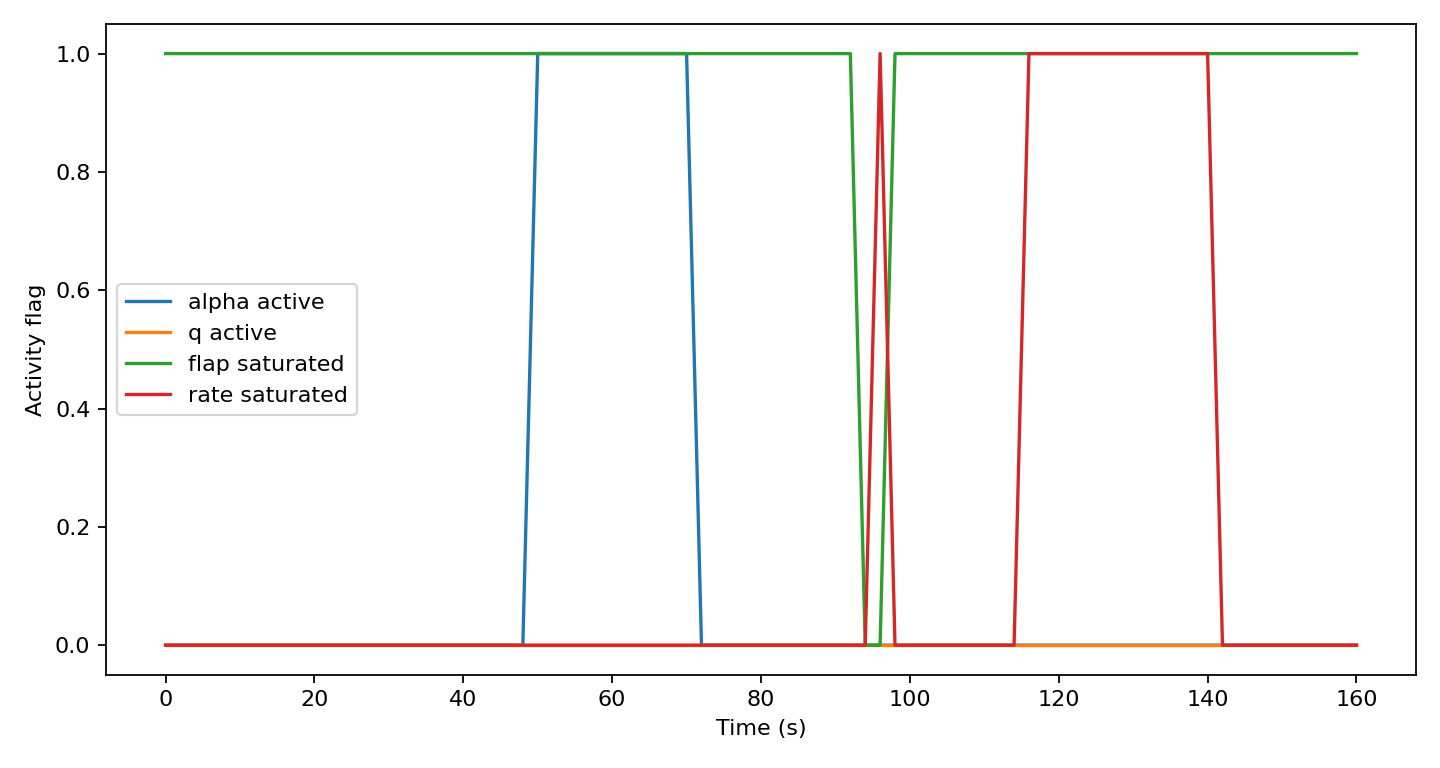

Soft state constraints are not an excuse to ignore the corridor. They are instrumentation. When the optimizer needs slack, it leaves evidence. That becomes crucial later, because it lets the project distinguish solver failure, tracking error, actuator saturation, and true constraint pressure.

Why soften alpha and pitch-rate constraints?

The first temptation was to make every corridor bound hard. That is cleaner mathematically, but it is brittle for this stage of the project. If the current state is already near the boundary, if the reduced model is mismatched, or if the actuator cannot move fast enough, a hard state corridor can turn the whole rollout into "the optimizer failed." That is less informative than a solved trajectory with explicit slack.

The compromise was asymmetric: flap position and flap-rate limits are hard, because actuator commands should not exceed the configured hardware envelope. Alpha and pitch-rate corridors are soft, heavily penalized, and logged. This keeps the optimizer alive while making violations visible. It also creates the diagnostic language used later: predicted slack, realized corridor miss, first violation time, and required corridor expansion.

The tolerance was a numerical decision, not a robustness claim

The nominal NMPC experiment also introduced a small 0.001 rad realized corridor-counting tolerance. This was added after the alpha dynamics correction and a feasible nonzero initial pitch-rate condition left only sub-milliradian boundary effects in the deterministic nominal rollout. The raw trajectory and margins are still saved, so the tolerance does not hide the data. It prevents numerical boundary grazing from being presented as a meaningful control failure.

The paired Monte Carlo benchmark

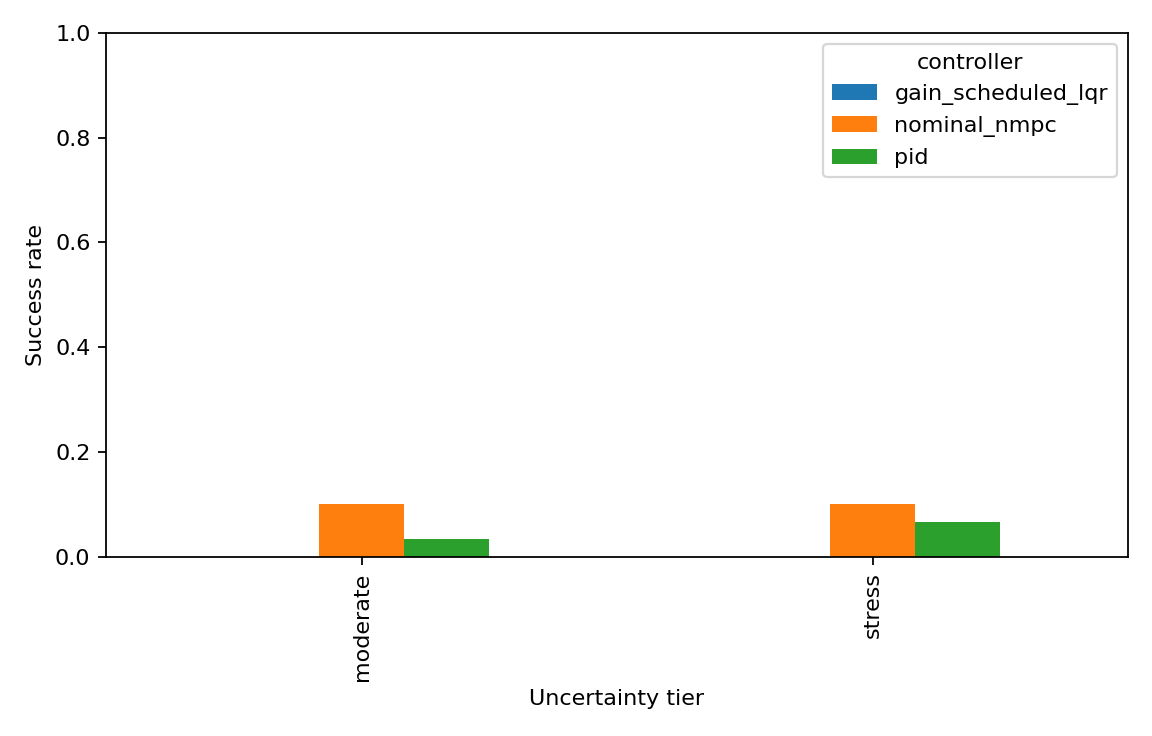

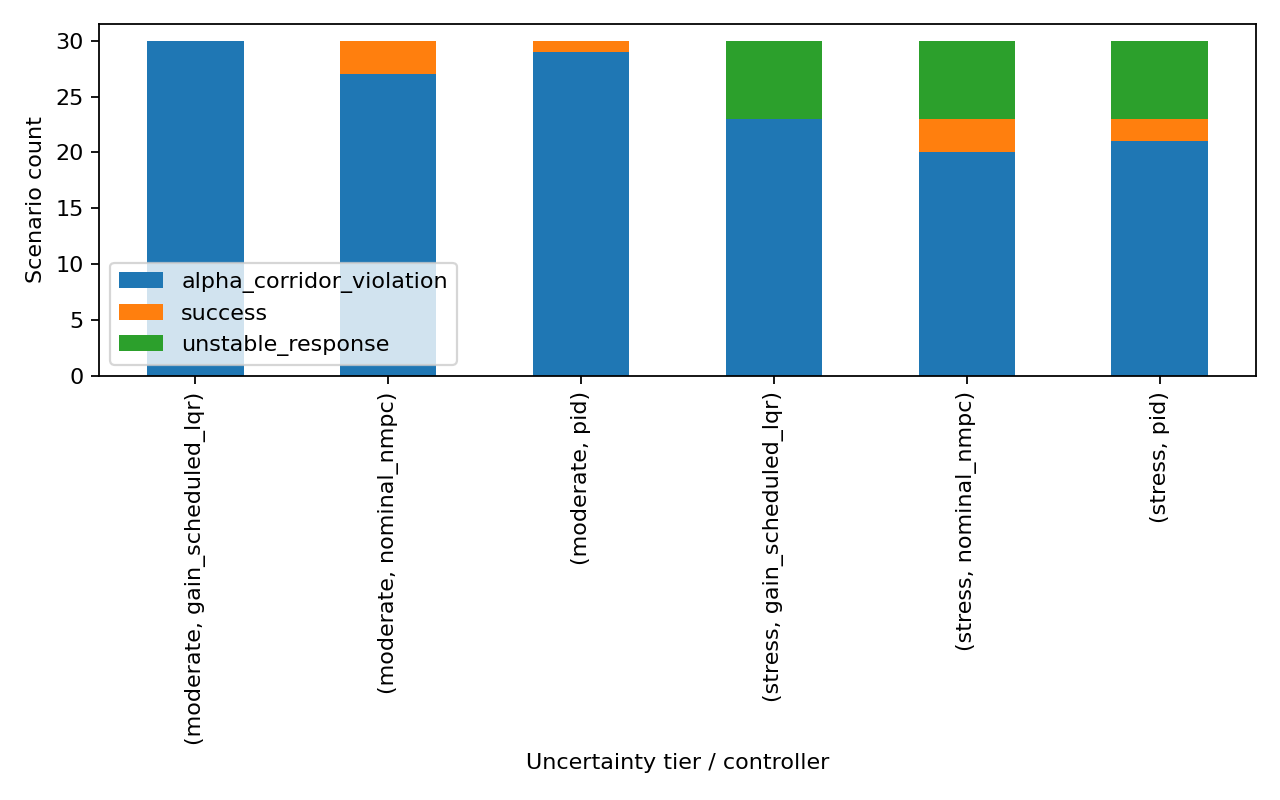

The paired Monte Carlo benchmark made the comparison honest. PID, gain-scheduled LQR, and nominal NMPC were evaluated on the same sampled scenarios in a moderate tier and a stress tier. This pairing matters: each controller sees the same scenario seed, which makes the comparison about controller behavior rather than sampling luck.

The controllers remained nominal. They did not get to inspect the sampled perturbed plant and adapt their internal model to it. That distinction is important. This benchmark was not measuring how well a controller performs with oracle knowledge of the uncertainty. It was measuring degradation when a controller designed for the nominal model is rolled through a perturbed plant.

The uncertainty set was deliberately broad enough to expose different failure signatures: atmosphere density scaling changes dynamic pressure, aerodynamic coefficient scaling changes moment response, actuator lag and delay weaken timing, sensor noise corrupts feedback, initial error changes how much recovery room remains, and disturbance moment tests whether the controller has enough authority to reject external torque.

Nominal NMPC is the best of this first group, but 3/30 is not a robustness result. It is a warning light. The strongest controller in the initial ladder is still mostly failing the strict corridor contract.

Robust-control probes that did not rescue success

Constraint tightening was the first robust-MPC-style attempt. Instead of planning against the evaluation corridor, the controller plans against a smaller internal corridor:

The intuition is good. If uncertainty can push a trajectory away from prediction, plan with margin. The result was informative but negative: tightened NMPC also scored 3/30 moderate and 3/30 stress, matching nominal NMPC on the full paired benchmark. It slightly reduced mean RMS alpha error, but it did not move the success label.

This mattered because constraint tightening was the simplest robust-control hypothesis. It was cheap to explain, cheap to implement, and fair to evaluate because the external benchmark stayed unchanged. Its failure ruled out a comfortable story: the nominal controller was not merely grazing the boundary and in need of a small inward buffer. Some cases required a different objective, different prediction state, or a different feasibility interpretation.

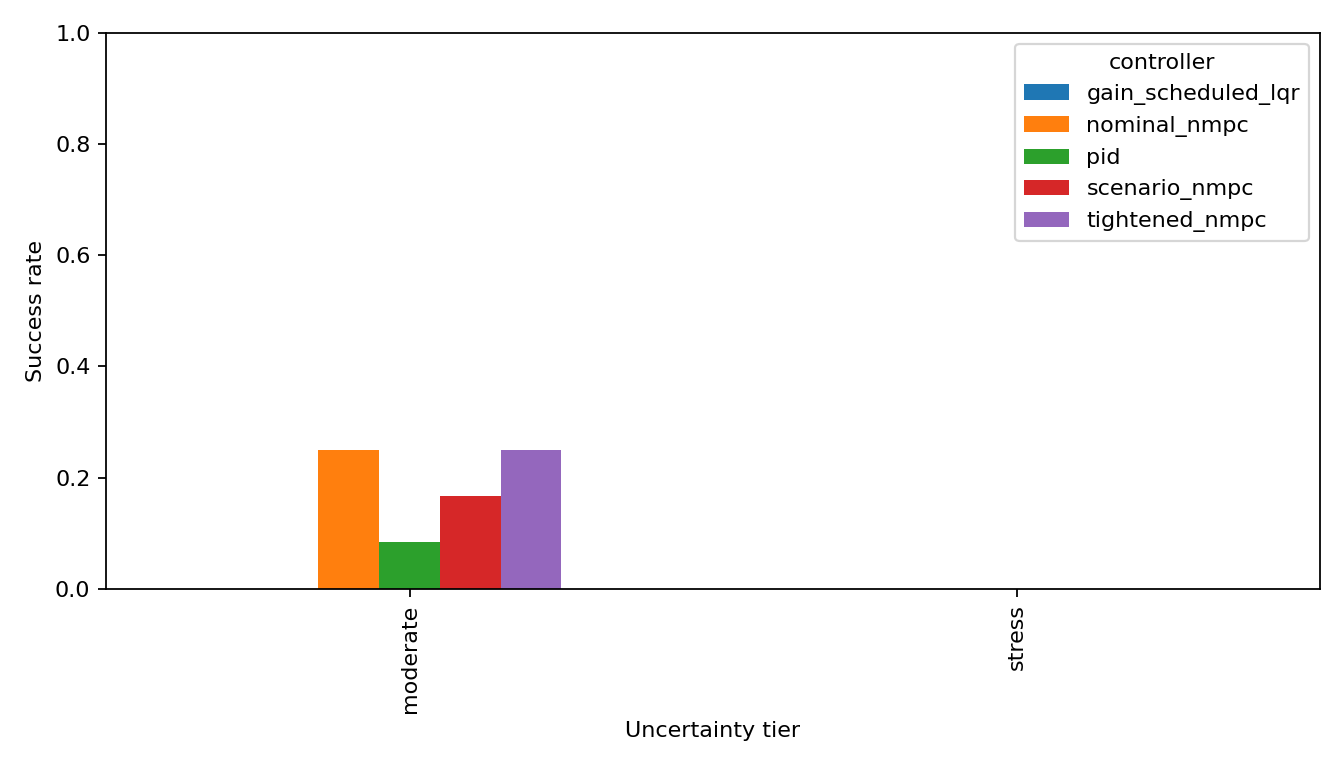

Scenario NMPC then optimized one shared flap sequence across multiple design futures:

That formulation is more honest about uncertainty, but it also makes the nonlinear program harder. On the overlapping subset used for the first scenario-MPC run, the controller slightly reduced mean RMS alpha error but did not improve binary success, and solver reliability became a limitation in stress scenarios.

The subset design was a practical compromise. Scenario NMPC expands the optimization because each candidate command sequence must satisfy several predicted futures. Running the full 30 + 30 benchmark immediately would have slowed iteration without adding much insight. The solution was to evaluate the first 12 scenarios per tier and filter the older nominal and tightened-MPC results to exactly that same overlap. The comparison stayed paired even though the first scenario-MPC pass was smaller.

Why the MPC variants missed

The strict benchmark was not asking for small average tracking error. It was asking for zero realized corridor violations. Those are different mathematical objects. Most of the MPC variants optimized an integral tracking-and-effort objective with soft corridor penalties:

But the success label is closer to an indicator over the entire closed-loop trajectory:

A controller can reduce J_track while leaving S = 0. That is exactly what happened repeatedly. The objective rewarded being close most of the time. The benchmark punished being outside the corridor at any time.

Nominal NMPC optimized the wrong plant

Nominal NMPC predicts:

while the rollout follows:

Define the one-step model error:

Even if the predicted trajectory satisfies the corridor with a small margin,

the realized trajectory can fail whenever the alpha component of the accumulated prediction error exceeds that margin:

In other words, nominal NMPC was often solving a clean finite-horizon problem whose feasible-looking prediction did not have enough margin against actuator lag, delay, aerodynamic scaling, disturbance moment, and initial-condition error.

Constraint tightening helped only if the miss was smaller than the buffer

Tightened NMPC replaced the planning corridor with:

That works only under a condition like:

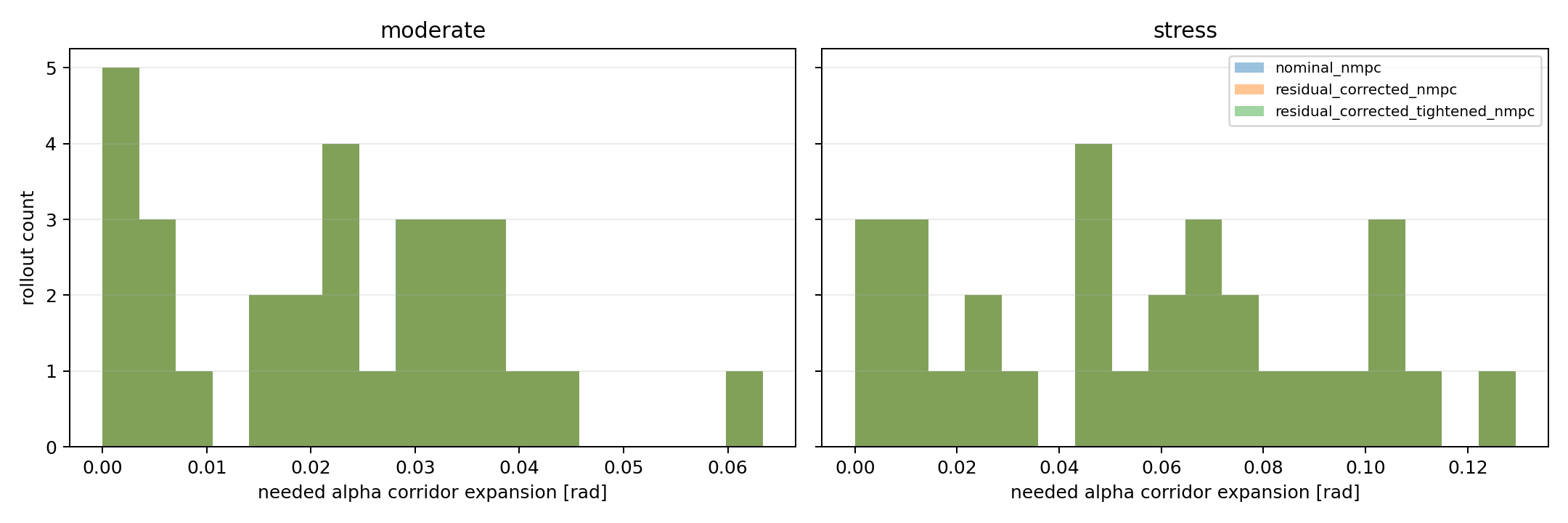

The diagnostics showed a harder situation. Failed moderate alpha-corridor cases needed about 0.024 rad median extra alpha margin, while failed stress cases needed about 0.064 rad. A small static buffer could improve average tracking but still lose the binary label whenever the realized miss exceeded the planned margin or occurred early enough that the controller had little recovery time.

Scenario NMPC made uncertainty explicit but harder to solve

Scenario NMPC asked one command sequence to work across several design futures:

Its implicit objective was closer to:

with shared controls across futures. This is more robust in spirit, but it increases the nonlinear program size and can make the compromise command conservative or numerically fragile. The shared sequence may reduce average predicted error across the chosen futures while still failing the realized future that matters:

That is why scenario planning was a useful test but not a rescue. It addressed model uncertainty structurally, but not enough to guarantee zero realized corridor exits under the benchmark.

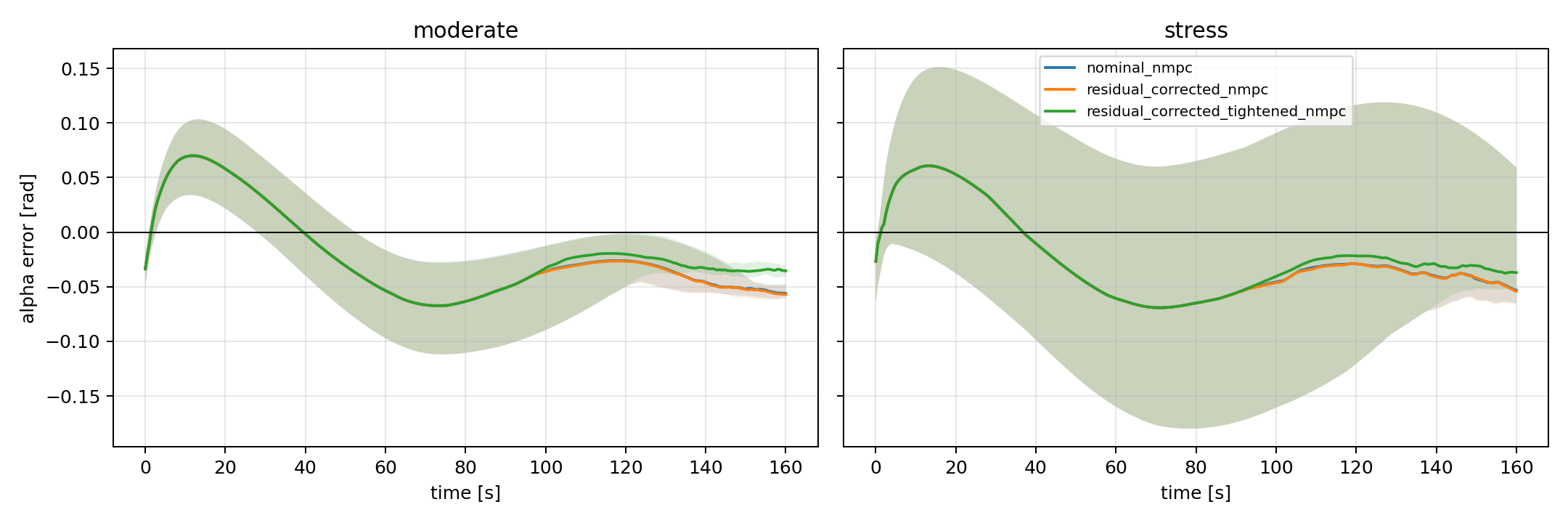

Residual-corrected MPC fixed a local derivative, not a trajectory-level feasibility problem

The learned residual variants tried to replace:

with:

where z contains schedule and atmosphere features. This helps only if the learned correction reduces the closed-loop corridor miss in the states and times that matter:

Improving residual MSE does not guarantee that. The residual model is trained on local derivative error, but the success label depends on closed-loop state constraint satisfaction after integration, feedback, actuator lag, delay, and optimizer choices. The learning target and the benchmark target were mathematically misaligned.

Slack-MPC changed the priority

The later slack-first controller changed the optimization from "track the reference while penalizing violations" toward "minimize violation first, then worry about centering and effort." A simplified version is:

with W_s dominating the lower-priority terms. The mathematical pivot is simple: the controller was no longer primarily rewarded for staying close to the reference. It was primarily penalized for needing corridor slack. That better matched the strict success label.

Residual learning, and why prediction was not enough

The learning hypothesis was reasonable. If the nominal model and perturbed truth model differ, learn the residual:

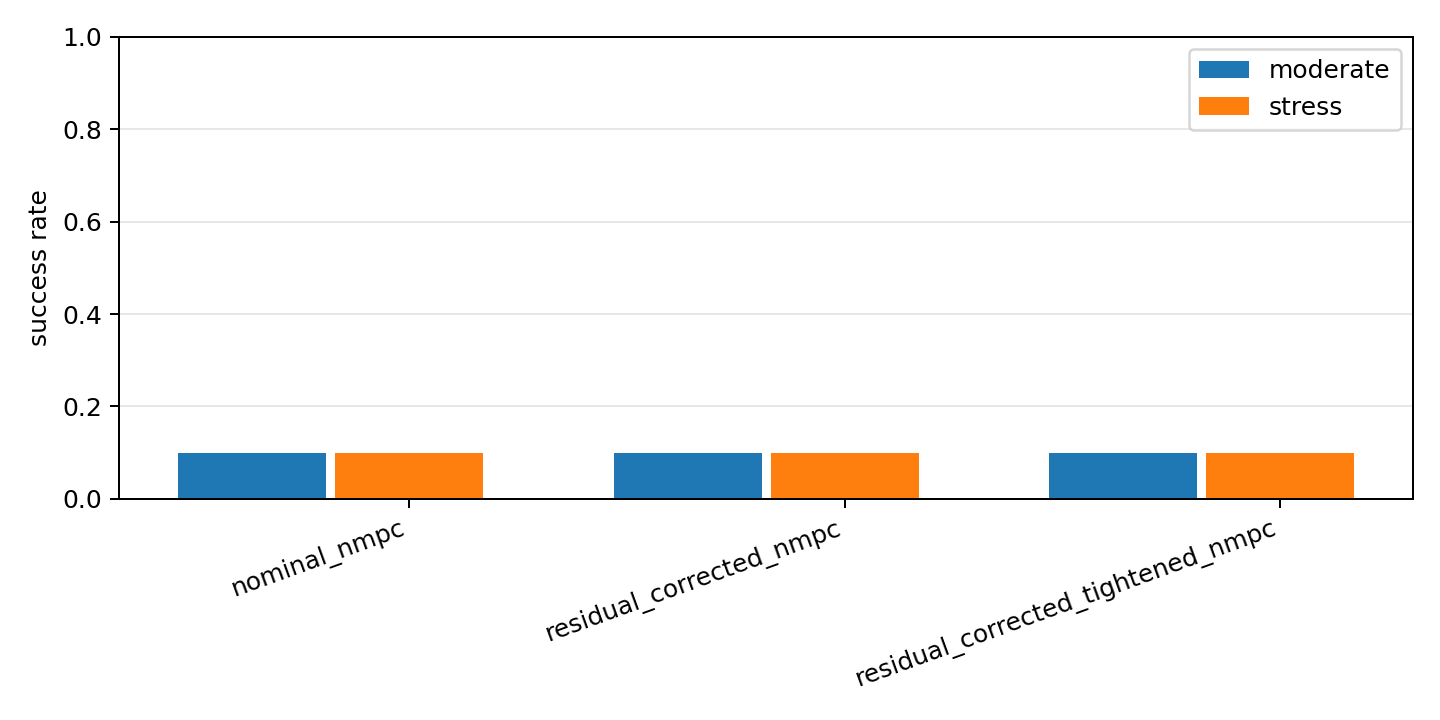

The residual-learning track generated supervised residual data and trained a PyTorch MLP residual model. The predictor improved test MSE over a zero-residual baseline by about 11.56%, while aggregate MAE was slightly worse. That supports a careful supervised-learning claim, not a closed-loop control claim.

The residual target was a derivative correction rather than a trajectory-level success label:

x_dot_nominal = f_nominal(x, u, mach, h)
x_dot_true    = f_truth(x, u, mach, h)
residual      = x_dot_true - x_dot_nominal

That was the cleanest first supervised-learning target. It separates model mismatch from controller behavior. If the learned model failed even at this local derivative task, it would be hard to justify embedding it into MPC. But succeeding at derivative prediction is only the first gate. The controller still has to use that correction in a way that improves a constrained trajectory.

The PyTorch and CasADi bridge problem

The first integration problem was not philosophical; it was software and optimization structure. The existing NMPC was a CasADi Opti graph. The trained residual model was PyTorch. Dropping an arbitrary neural network directly inside the symbolic nonlinear program would have made the solver path more complex and less auditable.

The project therefore tested a ladder of integration compromises. The first closed-loop probe predicted a local q_dot residual and converted it into an equivalent pitching-moment coefficient bias for the current solve. A second version fit a polynomial/ridge surrogate that could live inside CasADi symbolically. The consolidated version scheduled one PyTorch-predicted residual bias per horizon row before solving, so the optimizer saw a fixed correction sequence rather than a neural network embedded in its decision graph.

The next tests embedded the residual in MPC in several ways: a local learned correction, a horizon-embedded polynomial surrogate, and a consolidated PyTorch residual-corrected NMPC benchmark. The full paired result was the cleanest:

This is the moment where many project writeups would get vague. The honest interpretation is sharper: learning a local derivative correction is not the same as learning how to preserve feasibility under actuator limits, delay, uncertainty, and zero-violation labels.

The failed residual path also changed the research question. Before the consolidated residual benchmark, it was plausible that the nominal model was the main bottleneck and that a learned dynamics correction would unlock success. After that benchmark, the explanation was too small. The residual model could move the prediction and slightly improve some average errors, but the hard event was still a trajectory-level corridor violation.

What each ablation ruled out

The article becomes much stronger when the failed variants are treated as hypothesis tests rather than side quests. Each controller change was allowed to kill one plausible explanation for the low success rate.

This is the difference between a result table and a research story. A result table says what won. An ablation narrative says which explanations are no longer credible.

The diagnostic turn

After the residual benchmark, the right question changed from "which controller wins?" to "how exactly do failures fail?" The failure-diagnostics pass computed the required alpha corridor expansion for each rollout:

The result was one of the most useful findings in the project. Failed moderate alpha-corridor cases needed about 0.024 rad median extra alpha margin. Failed stress alpha-corridor cases needed about 0.064 rad. Stress unstable-response cases violated alpha early, around 4.0 s median first alpha violation. Median flap angle saturation was 0.0 in the diagnostic groups.

That last detail matters. If failures were mostly flap-angle saturation, the next step would be obvious. But the data pointed instead toward timing, initial drift, lag/delay pressure, prediction mismatch, and feasibility. The corridor misses were not just the flap hitting a stop.

Fallback hooks were not the same as fault tolerance

The fault-injection experiment added deterministic probes: stuck flap, reduced flap effectiveness, biased alpha measurement, delayed actuator, sudden density jump, and a large unmodeled disturbance moment. It also logged fallback hooks for previous-feasible MPC control, residual-error-triggered tightening, and LQR safe mode after repeated solver failures.

The result was another useful negative result. The fallback-enabled controller still scored 0/6 strict successes across the fault cases. Constraint tightening activated frequently, but previous-feasible-control and LQR safe-mode fallbacks did not activate in the saved run because the failures were not mainly repeated solver failures. They were plant/corridor failures. That distinction prevented a false fix: adding solver-failure fallbacks does not solve a trajectory that is already leaving the corridor under a faulted plant.

Strict success and controlled recovery had to split

The safety-first controller experiment introduced a second metric: controlled recovery. Strict success keeps the original zero-violation benchmark label. Controlled recovery asks a different question: did the controller keep the response bounded without instability or solver collapse, even if it grazed or missed the corridor?

This vocabulary mattered because the project needed to stop treating all failures as identical. A tiny bounded alpha miss and an unstable response are both strict failures, but they imply different engineering next steps. The saved safety-first probe still scored 0/3 strict successes in both tiers, while controlled recovery reached 2/3. That did not solve the benchmark, but it gave the article a more honest way to discuss partial safety behavior.

A single-scenario autopsy

The summary tables say the main story, but one scenario makes the mechanics easier to see. In the first moderate uncertainty scenario, the nominal controller is not unstable and it does not run out of flap angle. It simply spends too much of the rollout outside the alpha corridor.

This case is the project in miniature. The residual correction does not fix the failure because the failure is not simply a missing local derivative term. The tightened residual controller improves RMS alpha error a little, but the same strict violation count remains. Slack-MPC changes the optimization priority: it treats corridor slack as the first thing to avoid, rather than a secondary penalty behind reference tracking. The hybrid controller keeps that same constrained decision layer and uses learning only to propose a better command prior.

The design decision that follows is subtle but important: if the metric is zero corridor violations, then average tracking error is not the right organizing objective. The controller must be built around feasibility pressure first, and tracking elegance second.

Feasibility ceiling and oracle imitation

The slack oracle is not a deployable controller. It is non-causal and full-horizon. Its purpose is diagnostic: estimate how many scenarios are strictly feasible at all under the modeled truth dynamics and actuator limits.

The key design choice was to optimize slack before tracking elegance. Earlier controllers were often judged by RMS alpha error, but the failures were corridor failures. The oracle therefore asks a different question: if the whole future were known, how small could the alpha and pitch-rate corridor violations be under the same flap limits?

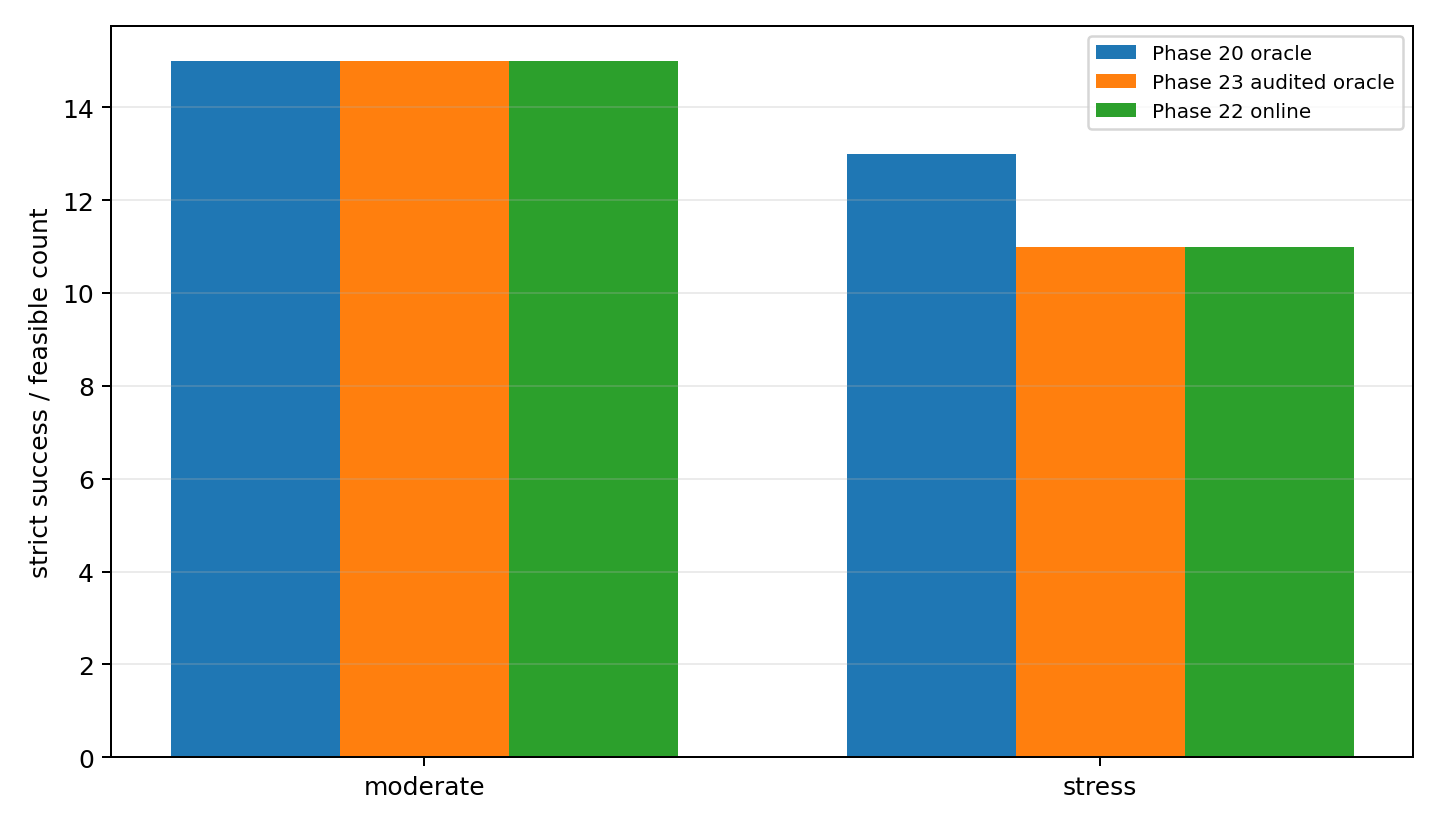

The later audited feasibility ceiling is the reframing point:

That does not mean the real vehicle has this ceiling. It means the configured reduced-order benchmark has this ceiling under the audited oracle formulation. Strict success was no longer just a controller-tuning target. It was partly a feasibility and corridor-design question.

Why oracle imitation came before a bigger neural policy

The first oracle-imitation controller used a small ridge-regression policy rather than jumping straight to a neural policy. That was intentional. The project did not yet need a more expressive learner; it needed to know whether the oracle’s command structure was useful online at all. A linear policy over corridor-centered features is easier to inspect, easier to reproduce, and easier to diagnose when it fails.

Scaling to the full benchmark showed both promise and a trap. The ridge policies reached 15/30 strict successes in the moderate tier and 11/30 in the stress tier, with controlled recovery of 24/30 and 17/30. But aggregate success counts hid scenario swaps: the policy could match an oracle count while missing specific oracle-feasible cases and succeeding elsewhere.

The autopsy that changed the next controller

The missed-case autopsy replayed oracle raw flap command sequences through the uncertain plant for missed oracle-feasible cases. This tested a specific hypothesis: maybe the ridge policy failed only because it imitated the oracle command poorly. If replaying the oracle command recovered the misses, the next step would be better imitation.

Replay recovered 0/1 missed moderate strict successes and 0/3 missed stress strict successes. Some alpha misses shrank, but none crossed the strict success boundary. That result redirected the project away from "train a bigger policy" and toward actuator-aware closed-loop replanning. The failure was not only command imitation error; it was also transfer through actuator lag, uncertainty, and online correction needs.

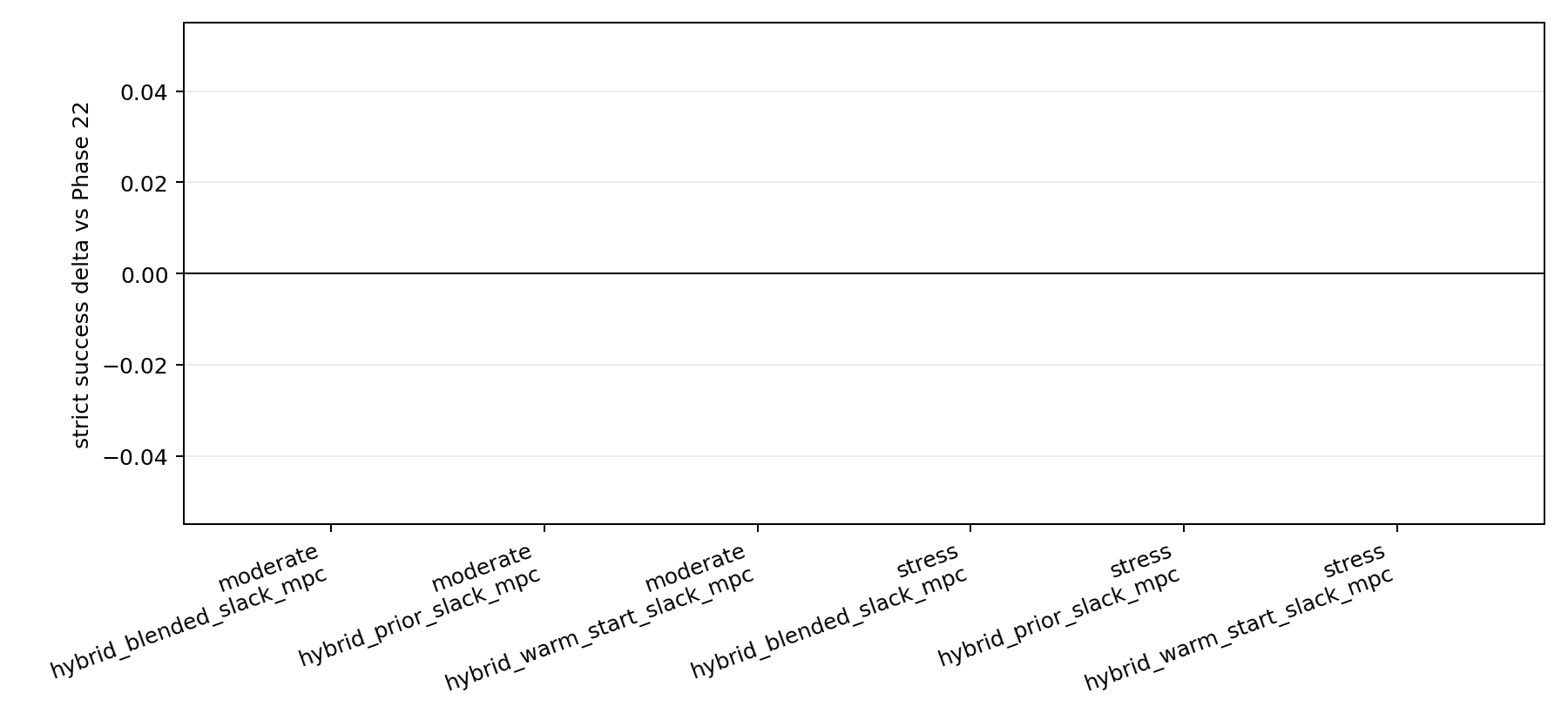

Hybrid imitation plus slack-MPC

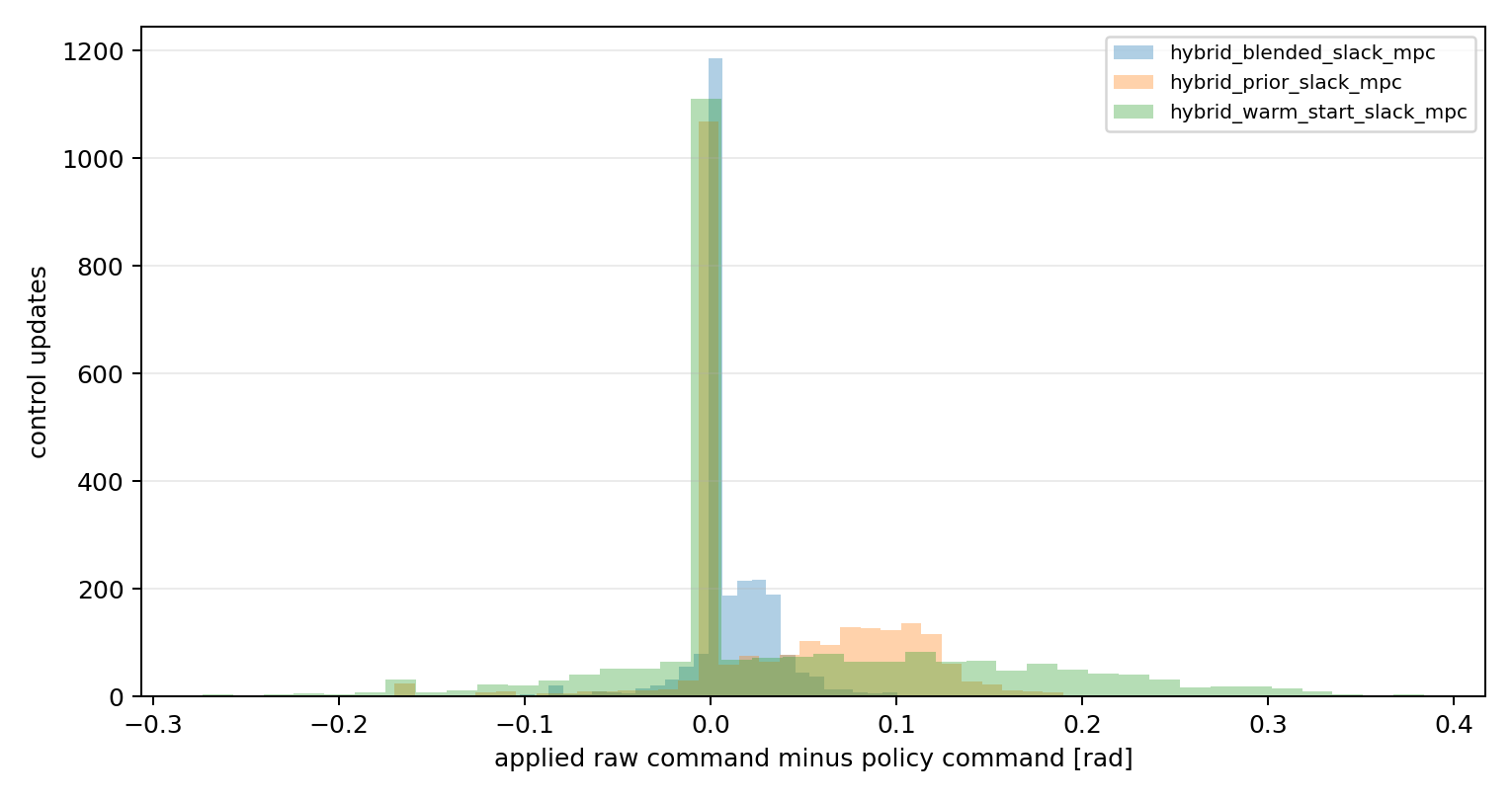

The final architecture uses learning in the place that earned trust: as a proposal or warm start, not as the sole authority. The learned oracle-imitation policy proposes a command prior:

where z_k includes state, reference, corridor, schedule, and actuator-context features. MPC still solves the constrained problem:

subject to the same actuator-aware dynamics and constraints. In other words: learning suggests, MPC checks and decides.

This is the central design philosophy of the project. The learner should not bypass the constraints that made the benchmark meaningful. It can propose a useful shape for the command sequence, pull the optimizer toward oracle-like behavior, or reduce initialization burden. But the final command still comes from a controller that knows the actuator limits, slack priorities, and prediction dynamics.

That architecture also makes the negative residual-learning result less disappointing. Learning did not help much when it was asked to be a local dynamics patch. It became more credible when it was trained on the object the controller actually needed: a slack-minimizing command strategy. The target changed from "predict the derivative mismatch" to "help the constrained optimizer find the kind of command sequence that preserves feasibility when possible."

The best result is ceiling-matching, not magic. Hybrid imitation plus slack-MPC scores 15/30 strict success in the moderate tier and 11/30 in the stress tier, with controlled recovery counts of 24/30 and 17/30. That matches the audited feasibility ceiling rather than claiming to exceed it.

Timing and onboard realism

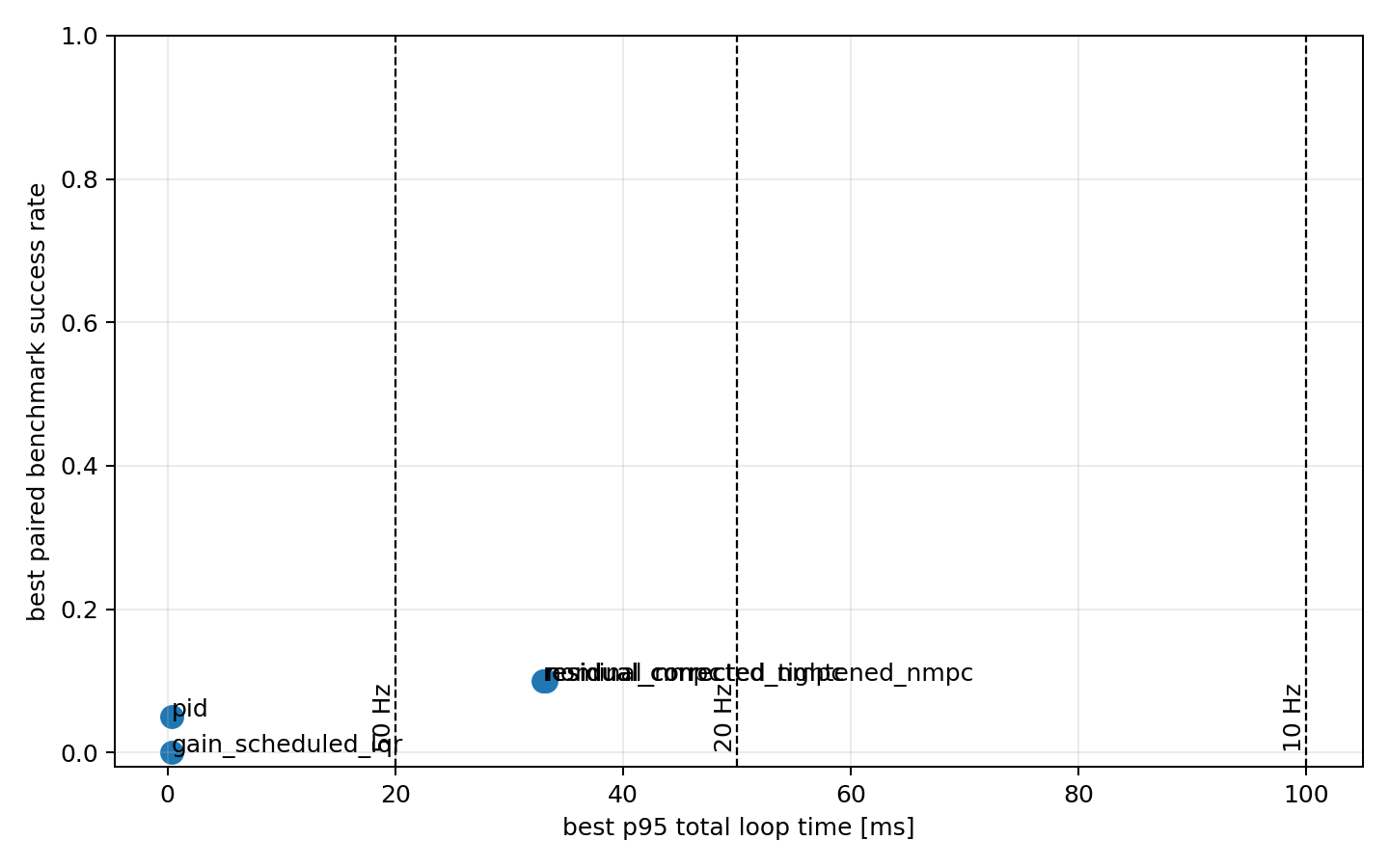

The timing benchmark measured Python/CasADi loop timing across PID, gain-scheduled LQR, nominal NMPC, and residual-corrected NMPC variants. The result is unsurprising but important: PID and LQR meet all tested p95 budgets at 10, 20, and 50 Hz. NMPC variants meet the 10 Hz budget in most rows, only partially meet 20 Hz, and do not meet 50 Hz in the current implementation.

Residual neural-network inference is sub-millisecond and is not the bottleneck. The expensive part is nonlinear optimization. That suggests the right future work: warm starts, code generation, smaller horizon formulations, solver tuning, and embedded-target measurements before making any onboard claim.

This timing result also shaped the hybrid design. If policy inference is tens of microseconds and nonlinear optimization is milliseconds, the learner is not valuable because it is the only component that can run. It is valuable if it reduces solve difficulty, improves warm starts, or gives the optimizer a better command prior. The performance question is therefore not "can a neural network replace MPC because it is faster?" It is "can a learned prior make constrained MPC more reliable or easier to solve while the optimizer remains in charge?"

Where this fits

This project sits at the intersection of constrained MPC, robust/scenario MPC, learning-based MPC, and entry/descent optimal control. It is not trying to replace those literatures. It borrows their pressure points and tests a compact version of them in a reproducible reentry-attitude benchmark.

The closest conceptual ancestor is learning-based MPC: use data to improve the controller, but keep a constrained optimization layer responsible for safety-relevant decisions. The closest practical lesson comes from robust and scenario MPC: uncertainty handling is not free. It can reduce average error while making the solver harder or leaving strict feasibility unchanged.

The honest positioning is therefore modest. This is not a new robust-MPC theory contribution. It is a blog-grade research-engineering artifact showing why a naive learning augmentation did not solve a constrained reentry-attitude task, and why a feasibility-first hybrid design became more credible.

What this does not prove

This project does not prove that the current controller is flight-valid, certifiably robust, or optimal for a real reentry vehicle. The model is reduced-order. Altitude and velocity are scheduled rather than fully propagated. Aerodynamics are illustrative. Uncertainty distributions are research probes, not calibrated flight statistics. The oracle is non-causal. The learned policies are trained on synthetic reduced-order artifacts, not flight data, wind-tunnel data, CFD, or a validated 6DOF simulator.

It also does not prove that residual learning is useless. It proves something more specific: in this benchmark, the residual models tested so far do not improve strict zero-violation success when simply inserted as dynamics corrections. The useful learned component appeared later, after the problem was reframed around oracle structure, actuator-aware slack, and MPC authority.

The biggest modeling limitation is that the benchmark freezes the translational entry profile. That is exactly what made the project tractable, but it also means the controller cannot trade attitude behavior against trajectory shaping, guidance updates, bank-angle strategy, heating management, or range constraints. The alpha corridor is a stand-in for deeper vehicle constraints, not the complete safety envelope.

The biggest control limitation is that the feasibility ceiling is still an optimization artifact, not a theorem. The audited oracle is more truth-consistent than the earlier oracle, but it is still non-causal and reduced-order. Matching that ceiling is strong evidence for the benchmark story. It is not a reachability proof for a validated reentry vehicle.

The research lesson

The real lesson is not that MPC failed. The real lesson is that MPC made the failure legible. With solver logs, slack variables, paired Monte Carlo scenarios, alpha-miss diagnostics, timing measurements, oracle ceilings, and command-prior comparisons, the project can say more than "tracking was bad."

It can say: the hard part is preserving a strict angle-of-attack corridor under uncertainty, actuator dynamics, and possible infeasibility. Robust MPC asks whether we can plan for families of futures instead of one nominal future. Learning-augmented MPC asks whether data can predict mismatch, imitate useful oracle structure, or warm-start the optimizer without surrendering constraints.

The project's answer is not "yes, solved." It is more useful: start with nominal MPC, let it fail honestly, diagnose the corridor misses, estimate the feasibility ceiling, then add learning only where it helps the constrained controller make better decisions.

The most important design pattern is therefore not "MPC plus neural network." It is a sequence:

1. Define the corridor before optimizing the controller.
2. Keep the benchmark fixed while controller variants change.
3. Log slack, solver status, actuator activity, and failure labels.
4. Treat negative results as constraints on the next hypothesis.
5. Estimate feasibility before declaring a controller inadequate.
6. Use learning as a prior when it helps the optimizer, not as a way around the constraints.

That pattern is portable beyond this reduced-order reentry model. It is how learning-augmented control should feel when it is being honest: not a black-box replacement for dynamics and constraints, but a data-driven assistant to a controller that still has to answer to physics, actuators, and logged evidence.
